DuPont™ Vespel® Polyimide

Extremely high temperature creep resistant plastic with excellent friction and wear characteristics

About DuPont™ Vespel® Polyimide

DuPont™ Vespel® Polyimide is an extremely high temperature, creep resistant plastic material that is often used in high heat environments where thermoplastic materials lose their mechanical properties. Vespel®, a lightweight alternative to metal, is available in a variety of formulations including unfilled grades and several low friction and wear grades.

DuPont™ Vespel® Polyimide is capable of operating in a wide temperature range from cryogenic to extremely high temperatures. It has a low and consistent thermal expansion coefficient and outstanding creep characteristics, which allows parts made from DuPont™ Vespel® shapes to be machined to tight dimensional tolerances. The ductility and outstanding creep and stress relaxation behavior of DuPont™ Vespel® make it an excellent choice for applications such as valve components where sealing is required.

The Vespel® SP Family grades are available in a number of formulations including an unfilled grade (Vespel® SP-1) as well as filled grades with enhanced mechanical properties, dimensional stability, and friction and wear performance.

The Vespel® SCP Family grades are stronger and stiffer and have superior long-term thermal stability compared with the SP grades.

Is DuPont™ Vespel® right for your demanding application? Our plastics experts can answer your questions and discuss material options.

DuPont™ Vespel® for Aerospace Applications

DuPont™ Vespel® for Spacecraft

DuPont™ Vespel® for Semiconductor Machinery

DuPont™ Vespel® for Scientific Instrumentation

DUPONT™ VESPEL® POLYIMIDE PROPERTIES AND OPTIONS

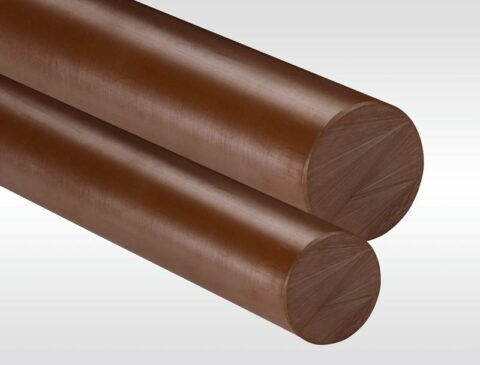

stacked sheets and rod of DuPont™ Vespel® SP-1

DuPont™ Vespel® SP-1

DuPont™ Vespel® Polyimide SP-1 is unfilled and offers superior electrical and thermal insulation properties.

stacked sheets and rod of DuPont™ Vespel® SP-3

DuPont™ Vespel® SP-3

DuPont™ Vespel® Polyimide SP-3 for unlubricated sealing and low wear in vacuum or dry environments with low outgassing.

two stacked sheets and a rod of DuPont™ Vespel® Polyimide

DuPont™ Vespel® SP-21

DuPont™ Vespel® Polyimide SP-21 is a graphite-enhanced grade with low-friction properties.

two stacked sheets and a rod of DuPont™ Vespel® Polyimide

DuPont™ Vespel® SP-22

DuPont™ Vespel® Polyimide SP-22 is dimensionally stable and offers enhanced resistance to wear and friction.

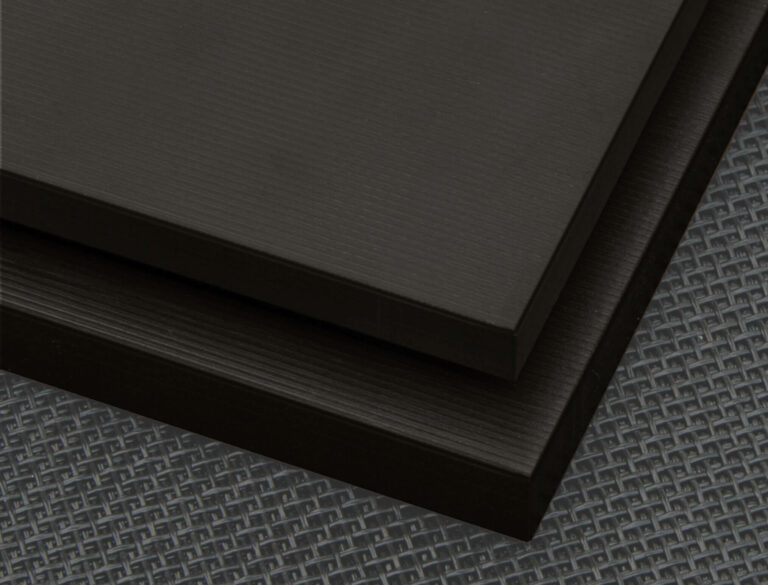

two stacked sheets of DuPont™ Vespel® SP-202

DuPont™ Vespel® SP-202

DuPont™ Vespel® Polyimide SP-202 conductive polymer eliminates static charge in high temperature substrate handling applications.

two stacked sheets and a rod of DuPont™ Vespel® Polyimide

DuPont™ Vespel® SP-211

DuPont™ Vespel® Polyimide SP-211 has a lower coefficient of friction than SP-21 without lubrication.

Two rods of DuPont™ Vespel® SCP-5000

DuPont™ Vespel® SCP-5000

DuPont™ Vespel® Polyimide SCP-5000 is unfilled with enhanced mechanical properties and thermal stability.

two rods of DuPont™ Vespel® in black

DuPont™ Vespel® SCP-5009

DuPont™ Vespel® Polyimide SCP-5009 is is graphite filled for high wear and friction applications.

two rods of DuPont™ Vespel® in black

DuPont™ Vespel® SCP-5050

DuPont™ Vespel® Polyimide SCP-5050 bearing and wear grade, for high temperature and wear resistance.

two rods of DuPont™ Vespel® in black

DuPont™ Vespel® SCP-50094

DuPont™ Vespel® Polyimide SCP-50094 for demanding applications that require high temperature and wear resistance.

FAQS ABOUT DuPont™ Vespel® Polyimide

Get answers to frequently asked questions about DuPont™ Vespel® Polyimide

What is Vespel® polyimide?

What are the benefits of polyimide?

What are the disadvantages of polyimides?

Where is polyimide used?

We're Here to Help

Can’t find what you need? Have a technical question?

Related Materials

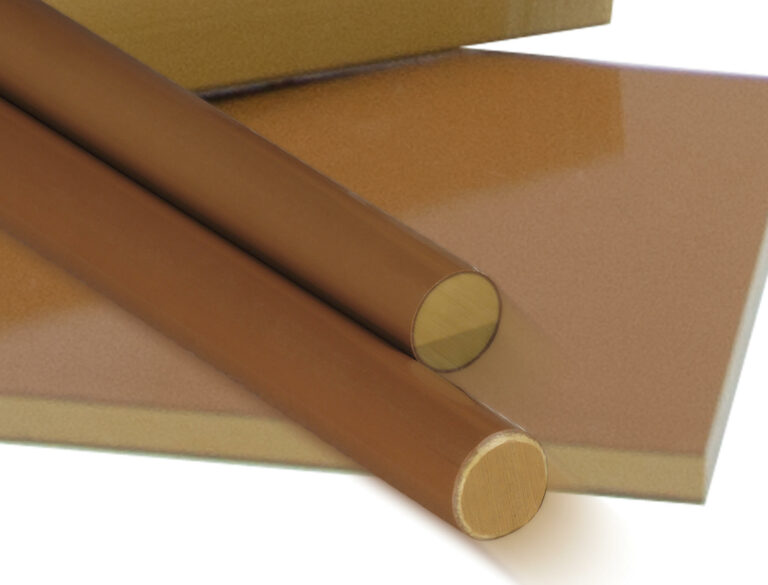

PAI-sheet-rod
