Plastic Sawing Machining Guidelines
Cut plastic materials using multi-axis CNC saws or manual circular or band saw blades
Sawing Guidelines
Sawing is a common method for machining plastic parts. Plastics may be cut using multi-axis CNC saws or manual circular or band saw blades. Below are guidelines for sawing several performance plastics.
Thick-walled parts should be sawed with relatively thin blades to avoid excessive frictional heat generation. Well-sharpened, strongly offset saw blades are recommended. Specially designed blades are available to optimize cutting for many plastic materials including nylon and acrylic.
Special Measures: Preheat material to 250°F Caution when using coolants, susceptible to stress cracking Use carbide-tipped tools
Heat before sawing: From 2.25" - PEEK, PPS | From 3.25" - PET, PBT | From 4.00" - Nylon 6

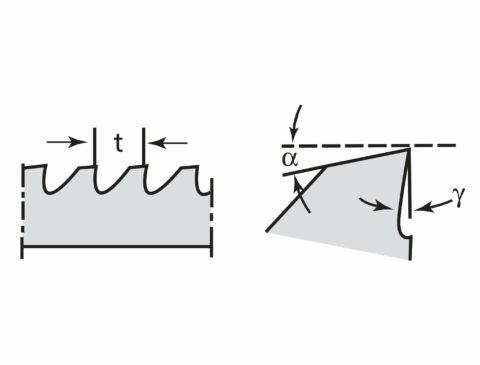

Material |
α Clearance Angle (°) |
ϒ Rake Angle (°) |
V Cutting Speed (ft/min) |
t Pitch (in) |
|---|---|---|---|---|
| ABS | 15 - 30 | 0 - 5 | 980 | 0.078 - 0.315 |
| Acetal (copolymer) | 20 - 30 | 0 - 5 | 1640 - 2600 | 0.078 - 0.197 |
| Acetal (homopolymer) | 20 - 30 | 0 - 5 | 1640 - 2600 | 0.078 - 0.197 |
| Noryl | 15 - 30 | 5 - 8 | 980 | 0.118 - 0.315 |
| Nylon 6 | 20 - 30 | 2 - 5 | 1640 | 0.118 - 0.315 |
| PAI | 5 - 10 | 0 - 3 | 2600 - 2950 | 0.118 - 0.50 |
| PBT | 15 - 30 | 5 - 8 | 980 | 0.118 - 0.315 |
| PEEK | 15 - 30 | 0 - 5 | 1640 - 2600 | 0.118 - 0.197 |
| PET | 15 - 30 | 5 - 8 | 980 | 0.118 - 0.315 |
| Polycarbonate | 15 - 30 | 5 - 8 | 980 | 0.118 - 0.315 |
| Polyethylene | 20 - 30 | 2 - 5 | 1640 | 0.118 - 0.315 |
| Polyproylene (homopolymer) | 20 - 30 | 2 - 5 | 1640 | 0.118 - 0.315 |
| Polysulfone | 15 - 30 | 0 - 4 | 1640 | 0.078 - 0.197 |
| PPS | 15 - 30 | 0 - 5 | 1640 - 2600 | 0.118 - 0.197 |
| PTFE | 20 - 30 | 5 - 8 | 980 | 0.078 - 0.197 |
| PVDF | 20 - 30 | 5 - 8 | 980 | 0.078 - 0.197 |
| PPSU (Radel® R) | 15 - 30 | 0 - 4 | 1640 | 0.078 - 0.197 |
| Ultem® | 15 - 30 | 0 - 4 | 1640 | 0.078 - 0.197 |
| DuPont™ Vespel® Polyimide | 5 - 10 | 0 - 3 | 2600 - 2950 | 0.100 |
